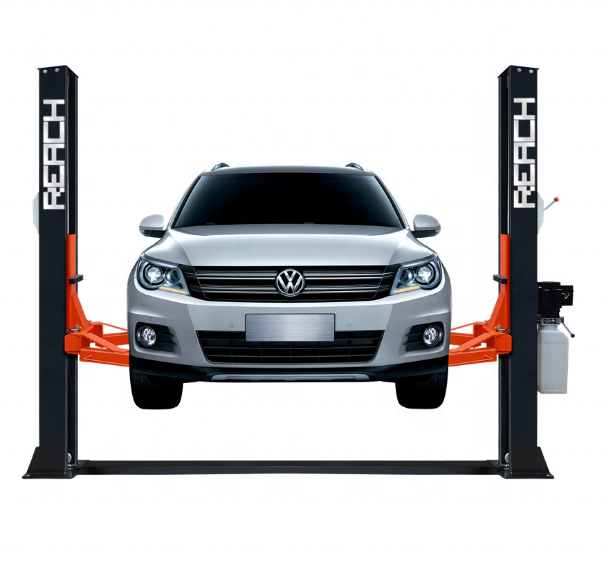

RH-B4KMS Two post hydraulic garage car lift with 4000kg

Short Description:

Product Description Electro-Hydraulic 2 Post Lift Floor Plate Type,Manual Single Side Lock Release Model :RH-B4KMS Features 1.Manual lock release from single side. 2.Automatic arm restraints,lifting arm automatically engages when lift is raised,and disengaged when lift lowered to the ground. 3.3-stage Screw-up pads suitable for low chassis vehicle and makes easy and quick service. 4.Parachute valve that equipped in hydraulic joint ensures safety in case of oil hose broken. 5.Door opening prot...


  • Min.Order Quantity: 1Piece
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: D/A,D/P,T/T
  • Type of currency: USD
  • Product Detail

    Product Tags

    Product Description

    Electro-Hydraulic 2 Post Lift Floor Plate Type,Manual Single Side Lock Release

    Model :RH-B4KMS

    Features

    1.Manual lock release from single side.

    2.Automatic arm restraints,lifting arm automatically engages when lift is raised,and disengaged when lift lowered to the ground.

    3.3-stage Screw-up pads suitable for low chassis vehicle and makes easy and quick service.

    4.Parachute valve that equipped in hydraulic joint ensures safety in case of oil hose broken.

    5.Door opening protection rubber as standard.

    6.Foot guard as CE standard.

    RH-B4KMS

    Specification

    Lifting capacity 4000kg
    Lifting height 1880mm
    Min height 105mm
    Lifting time <50s
    Motor power 2.2kw
    Mount width 3380mm
    Height of post 2824mm
    Width between post 2830mm
    Lowering time <40s
    Power supply 220v/380v

    B4KMS 尺寸
