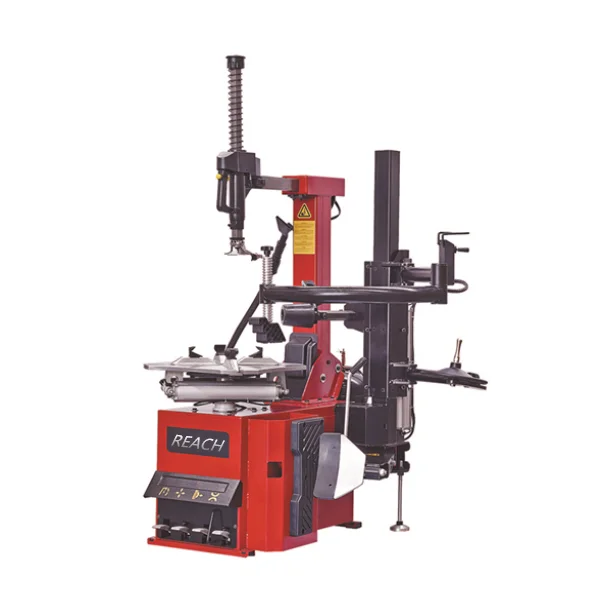

China Semi-Automatic Tire Changer RH-650RA

Short Description:

Product Description Pneumatically operated tilting column with right help arm Model :RH-650RA Features (1) The complete bead breaker cylinder made of steel iron, more durable. (2) The complete clamping cylinder with 80 diameter, the seal ring and the piston are integrated, less resistance. (3) The complete gearbox made of aluminium, light and more durable. (4)Pneumatically operated tilting column. (5) Simultaneous pneumatic horizontal and vertical arm locker. (6) Capable of handling stiff, w...


  • Min.Order Quantity: 1Piece
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: D/A,D/P,T/T
  • Type of currency: USD
  • Product Detail

    Product Tags

    Product Description

    Pneumatically operated tilting column with right help arm

    Model :RH-650RA

    Features

    (1) The complete bead breaker cylinder made of steel iron, more durable.

    (2) The complete clamping cylinder with 80 diameter, the seal ring and the piston are integrated, less resistance.

    (3) The complete gearbox made of aluminium, light and more durable.

    (4)Pneumatically operated tilting column.

    (5) Simultaneous pneumatic horizontal and vertical arm locker.

    (6) Capable of handling stiff, wide and low-profile tire.

    (7) Right help arm.

    (8) Pneumatic bead breaker.

    /A/ Rear air tank serves as tubeless tire inflating device.

                                                              China Semi-Automatic Tire Changer RH-650RA
    Specification

    Power:

    1.1kw/0.75kw

    Power supply:

    220V/380V

    Max.wheel diameter:

    41″(1040mm)

    Max.wheel width:

    14″(355mm)

    Outside clamping:

    10″~21″
    Inside clamping: 12″~24″

    Air supply:

    8bar-10bar

    Bead breaker force:

    2500kg

    Noise level:

    <70dB
    Packing size:

    1080mm*900mm*960mm(main body)
    1050mm*450*430mm(right help arm)
