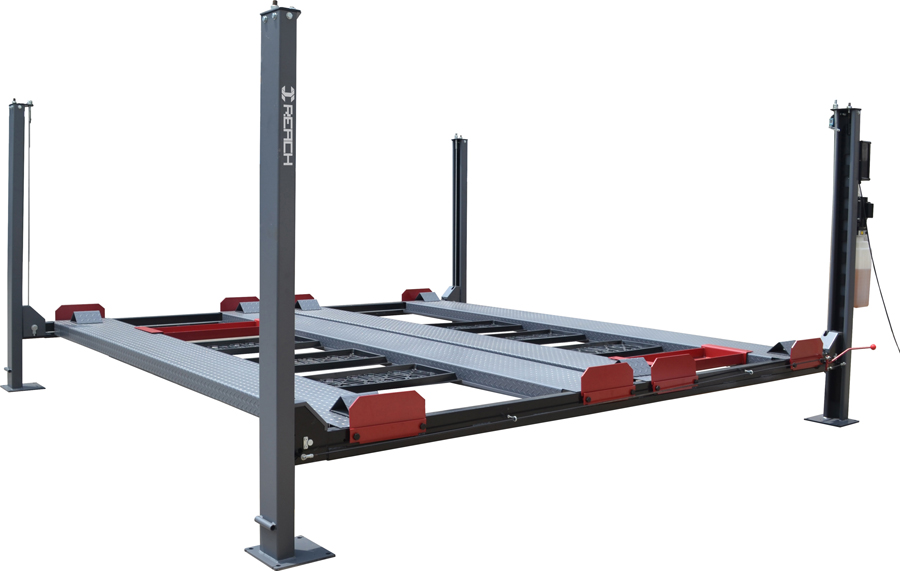

4RH-4200D Double Four Post Parking Lift

Great quality built with CE certificate and ISO 9001.Perfect equipment for parking, storage and garage service.Space saving, two parking space for four cars.Equipped with mobile kit as standard, the portable design is more convenient for household use.One hydraulic cylinder mounted under runway ensures the strong lifting and lowering.Single point manual lock release, simple and convenient for operation.Mechanical safety lock installed in each column .Free jack tray specially for tire and break work.Standard 3pcs free drip trays protect the bottom vehicle from oil leaking and muddy water of upper vehicle.Equipped overflow valve. Drive on-off protection on runway platform-each 2pcs baffle block.Cable protection on each column. Optional 24V control box and foot protection.
Send Inquiry
Description
Technical Parameter

Features
●  Great quality built with CE certificate and ISO 9001.

●  Perfect equipment for parking, storage and garage service.

●  Space saving, two parking space for four cars.

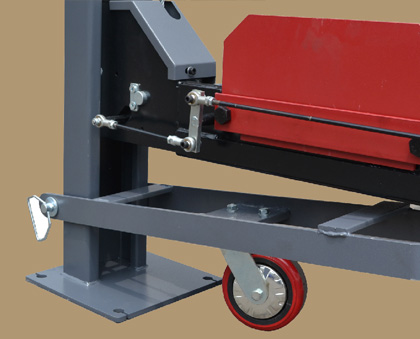

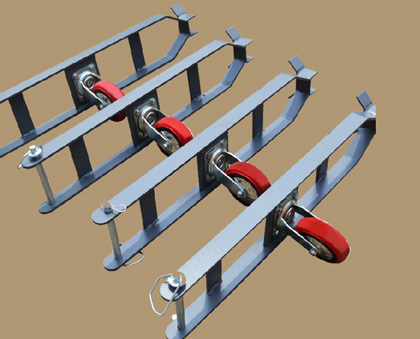

●  Equipped with mobile kit as standard, the portable design is more convenient for household use.

●  One hydraulic cylinder mounted under runway ensures the strong lifting and lowering.

●  Single point manual lock release, simple and convenient for operation.

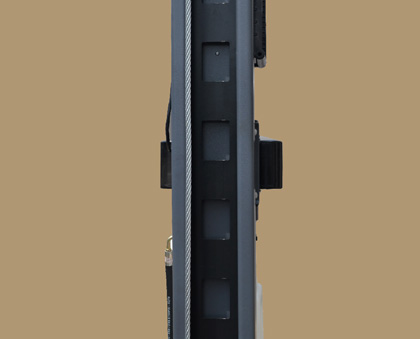

●  Mechanical safety lock installed in each column .

●  Free jack tray specially for tire and break work.

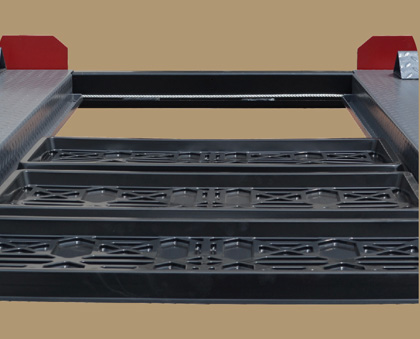

●  Standard 3pcs free drip trays protect the bottom vehicle from oil leaking and muddy water of upper vehicle.

●  Equipped overflow valve.

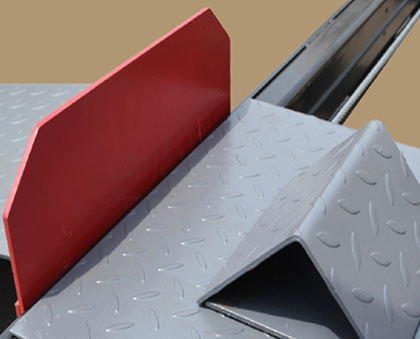

●  Drive on-off protection on runway platform-each 2pcs baffle block.

●  Cable protection on each column.

●  Optional 24V control box and foot protection.



  Technical Data

Lifting capacity4200kg
 Lifting height 1880mm
 Min. height 134mm
 Runway length 4200mm
 Runway width 894mm
 Unilateral runway width 507mm
 Max. through width 2200mm
Lifting time50-60s
Motor power2.2kw
Power supply220/240/380/415v

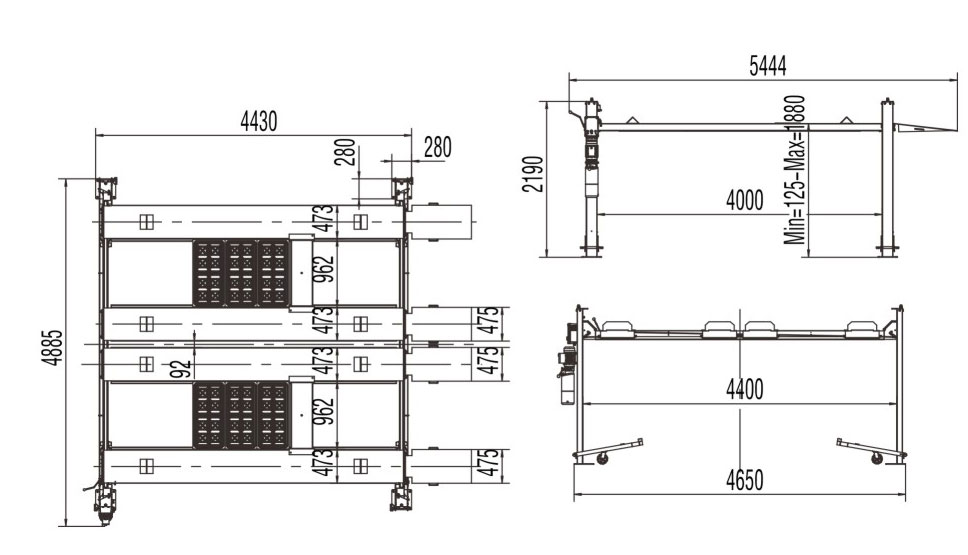

  Dimension

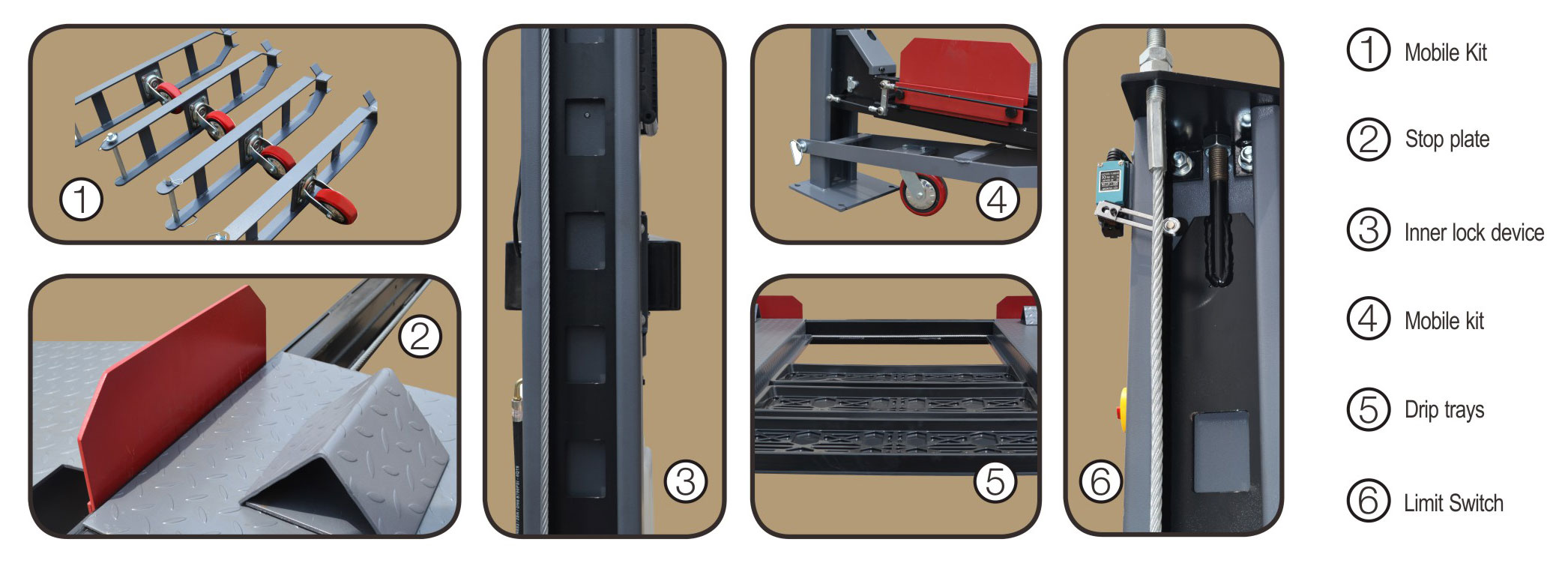

  Details



  About REACH







Q1:What is your lead time?

The delivery time will be detrmined according to the quantity of the order. usually 30days



Q2:What is the MOQ of your product?

1 unit



Q3:What is the warranty?

1 year,we will provide ample spare parts and training of operation and maintenanc


Q4:What is your payment terms?

<$10000,100% in advancea (T/T or credit card)

<$40000,30% advance and balance before delivery


Q5:Can i get discount from buying your goods?

The price depends one the quantity,we will automatically making discount to our customer



Q6:Our location voltage is 220v,60hz,does it ok for me?

That’s no problem,we will according to your local to adjust the voltage and plug for you



Q7:How about your service?

1. If you have any question, please don’t hesitate to contact us,all questions will be replied within 24 hours

2. We greatly appreciate your Positive Feedback. PIs do NOT leave negative feedback without asking for help.

3.0ur aim is to provide Top Level Customer Service, so we will try our best to solve any problems


Technical parameter


Lifting capacity2800kg
 Lifting height 1835mm
 Min. height 110mm
 Runway length 4200mm
 Runway width 894mm
 Unilateral runway width 507mm
 Max. through width 2200mm
Lifting time50-60s
Motor power2.2kw
Power supply220/240/380/415v
