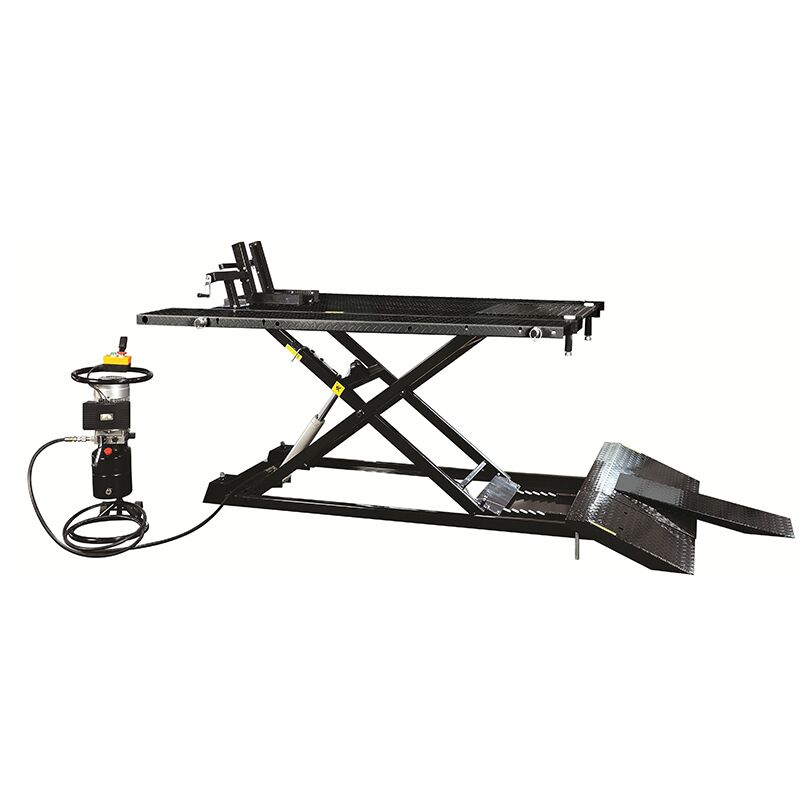

RH-1012 1500LB Hydraulic Scissor Motorcycle Lift

Product Description 1500LB Hydraulic Scissor Motorcycle Lift

Model :RH-1012

Features

•Equipped with side plate and side plate guide plate.

•Column fork.

•Can use rectangular tube wheel clamp or front wheel bracket HM4701A of our motorcycle.

•Use an external power source, including an electric pump station.

•Small guide plate, suitable for motorcycle with chassis bottom.

•Adjustable height universal wheel, adjust the universal wheel when moving without load, make the whole machine ascend and move conveniently.

•Automatic release insurance structure for easy operation.

Specification

2017 1500BLhydraulic scissor motorcycle lift

RH-1012

 Capacity: 1500LBMin.Height:190mmMax.Height:1085mmTable Size:2050×750mmGuide bar size:627×1300mmNet Weight:299kgs(1#Mainframe Box)

50.5kgs(2#Side plate Box)

13.5kgs(3#Pump Box)Gross Weight.:380kgs(1#Box)

53kgs(2#Box)

15kgs(3#Box)Package Size:229x67x29.5cm(1#Box)

208×42.5×18.5cm(2#Box)

62.5×26.5x23cm(3#Box)Quantity/40FCL:50pcsSide plate size:2255×268mm
